Model No. |

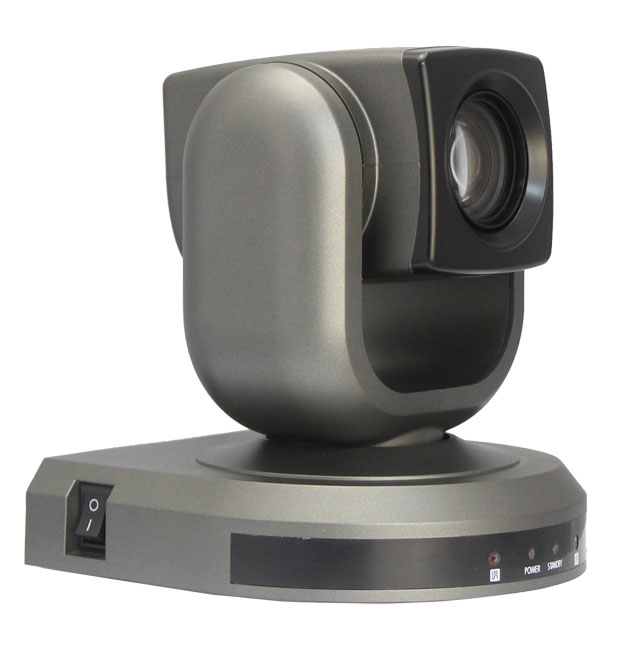

HD920-DSY-SN6300 |
|
|
Image |
Image Sensor |
1/2.8” Progressive CMOS |
|
Effective Pix |
3.27 Megapixel |
|
|
Min. Illumination |
0.5 Lux at F1.6 |
|
|
White balance |
Auto/Manual |
|
|
Gain control |
Auto/Manual |
|
|
Backlight compensation |
On/Off |
|
|
Shutter speed |
1/1 - 1/10,000S |
|
|
S/N ratio |
>50 db |
|
|
Lens |
Focus |
f=4.7-94mm,F1.6-F3.5 |
|
Iris |
Auto/Manual |
|
|
Lens |
20 Optical x 12digital zoom |
|
|
Horizontal view angle |
55.4° |
|
|

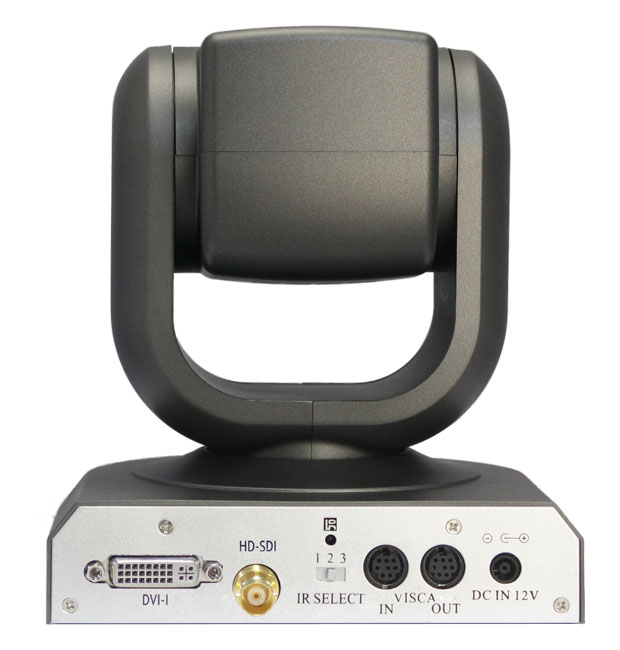

Video output |
HD-SDI, DVI-I |
|
|
Signal system |
1080p@30fps,1080p@25fps,1080i@60fps, 1080i@50fps,720p@60fps,720p@50fps |
|
|
Control terminal |
EIA/RS232C,EIA/RS485(Bidirectional) USB |
|
|
Control Protocol |
VISCA, PELCO-D |
|
|
baud rate |
9600/ 38400 bps |
|
|
patrol line |
4 cruise sequence |
|
|
preset position |
64 preset positions |
|
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
|
Image auto flp |
Support Horizontal/Vertical image flip |
|
|
Pan movement speed |
1-60°/Second |
|
|
Tilt movement speed |
1-60°/Second |
|
|
Pan movement range |
Pan: 0-355° |
|
|
Tilt movement range |
Up: 90°, Down: 45° |
|
|
Pan scanning automatically |
Support Pan scanning automatically |
|
|
Boundary scanning |
0-355°(programmable) |
|
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
|
Power supply |
DC12V,2A |
|
|
Work Temperature |
0-50℃ |
|
|
Humidity |
0-95%RH |
|
|
LxWxH |
145mm x 148mm x 160mm |
|
|
Weight |
1100g |
|
