Model No.
|
HD8820-K4
|
|
|
Sensor |
Image Sensor
|
1/2.8" Progressive CMOS
|
|
Effective Pix
|
2.0 Megapixel
|
|
|
Min. Illumination
|
0.5 Lux at F1.6
|
|
|
White balance
|
Auto/Manual
|
|
|
Gain control
|
Auto/Manual
|
|
|
Backlight compensation
|
On/Off
|
|
|
Shutter speed
|
1/1 - 1/10,000S
|
|
|
S/N ratio
|
>50db
|
|
|
Lens
|
Focus
|
f=4.7-94mm
|
|
Iris
|
Auto/Manual
|
|
|
Lens
|
20x Optical zoom
|
|
|
Horizontal view angle
|
55.4°(W)~4°(T)
|
|
|

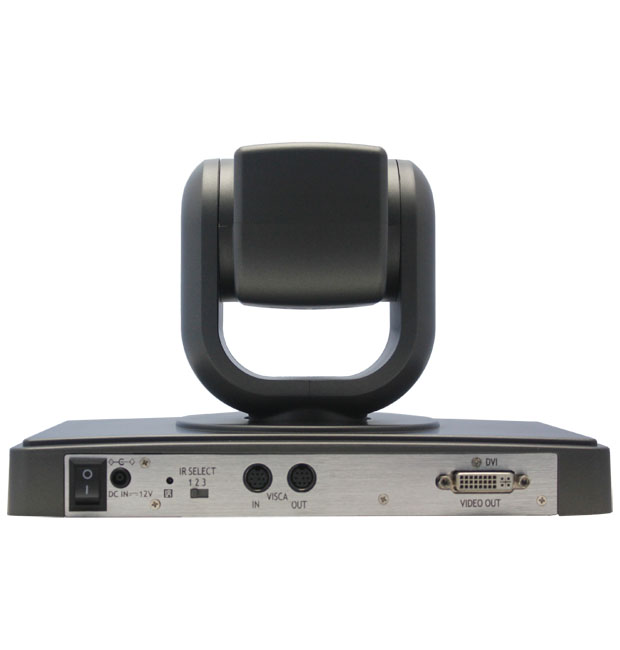

Video output
|
DVI-I
|
|
|
Signal system
|
1080P60, 1080P50,1080P30,1080P25,
720P60,720P50,720P30,720P25,PAL/NTSC
|
|
|
Control terminal
|
EIA/RS232C,EIA/RS485(Bidirectional)
|
|
|
Control Protocol
|
VISCA,PELCO-D
|
|
|
baud rate
|
9600/38400bps
|
|
|
patrol line
|
4 cruise sequence
|
|
|
preset position
|
64 preset positions
|
|
|
Speed Match
|
Pan/Tilt movement speed depends on camera module zoom in/out
|
|
|
OSD Menu
|
Access to OSD Menu and adjust camera module parameters
|
|
|
Image auto flp
|
Support Horizontal/Vertical image flip
|
|
|
Pan movement speed
|
1-200°/Second
|
|
|
Tilt movement speed
|
1-150°/Second
|
|
|
Pan movement range
|
Pan: 0-355°
|
|
|
Tilt movement range
|
Up: 90°, Down: 45°
|
|
|
Pan scanning automatically
|
Support Pan scanning automatically
|
|
|
Boundary scanning
|
0-355°(programmable)
|
|
|
Remote controller
|
IR Wireless Remote controller P/T/Z
|
|
|
Power supply
|
DC12V,2A
|
|
|
Work Temperature
|
0-50℃
|
|
|
Humidity
|
0-95%RH
|
|
|
LxWxH
|
250mm x 140mm x 154mm
|
|
|
Weight
|
1380g
|
|
