Model No. |
HD8820-DSYC-K4 |
|
|
Image |
Image Sensor |
|
|
Effective Pix |
2.0 Megapixel |
|
|
Min. Illumination |
0.5 Lux at F1.6 |
|
|
White balance |
Auto/Manual |
|
|
Gain control |
Auto/Manual |
|
|
Backlight compensation |
On/Off |
|
|
Shutter speed |
1/1 - 1/10,000S |
|
|
S/N ratio |
>50db |
|
|
Lens |
Focus |
f=4.7-94mm |
|
Iris |
Auto/Manual |
|
|
Lens |
20x Optical zoom |
|
|
Horizontal view angle |
70.96°(W)~4°(T) |
|
|

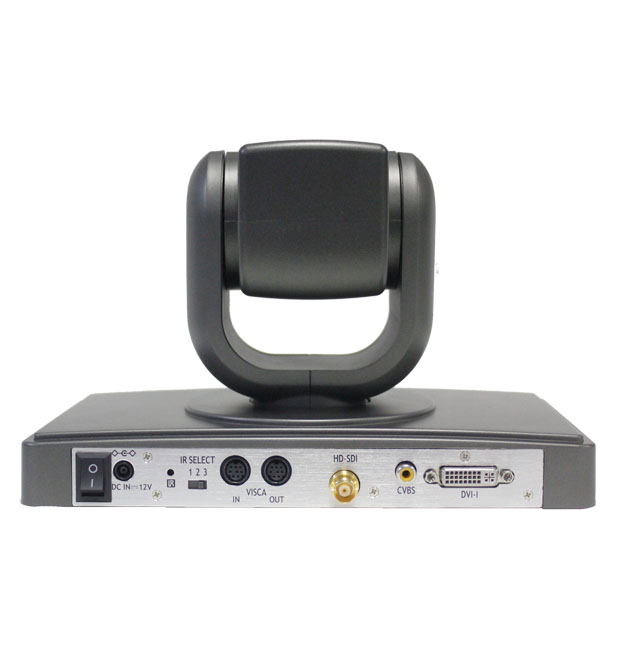

Video output |
HD-SDI CVBS DVI-I |
|
|
Video Output Mode |
1080P60, 1080P50,1080P30,1080P25, 720P60,720P50,720P30,720P25,PAL/NTSC |
|
|
PTZ Control Interface |
RS-232C, RS-485 (Bidirectional) |
|
|
Control Protocol |
VISCA,PELCO-D |
|
|
baud rate |
9600/38400bps |
|
|
patrol line |
4 cruise sequence |
|
|
preset position |
64 preset positions |
|
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
|
Image auto flip |
Support Horizontal/Vertical image flip |
|
|
Pan movement speed |
1-200°/Second |
|
|
Tilt movement speed |
1-150°/Second |
|
|
Pan movement range |
Pan: 0-355° |
|
|
Tilt movement range |
Up: 90°, Down: 45° |
|
|
Pan scanning automatically |
Support Pan scanning automatically |
|
|
Boundary scanning |
0-355°(programmable) |
|
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
|
Power supply |
DC12V,2A |
|
|
Work Temperature |
0-50℃ |
|
|
Humidity |
0-95%RH |
|
|
LxWxH |
250mm x 140mm x 154mm |
|
|
Weight |
1380g |
|
