Bộ chia 1-2 và khuếch đại S-Video Kramer PT-102S

Liên Hệ

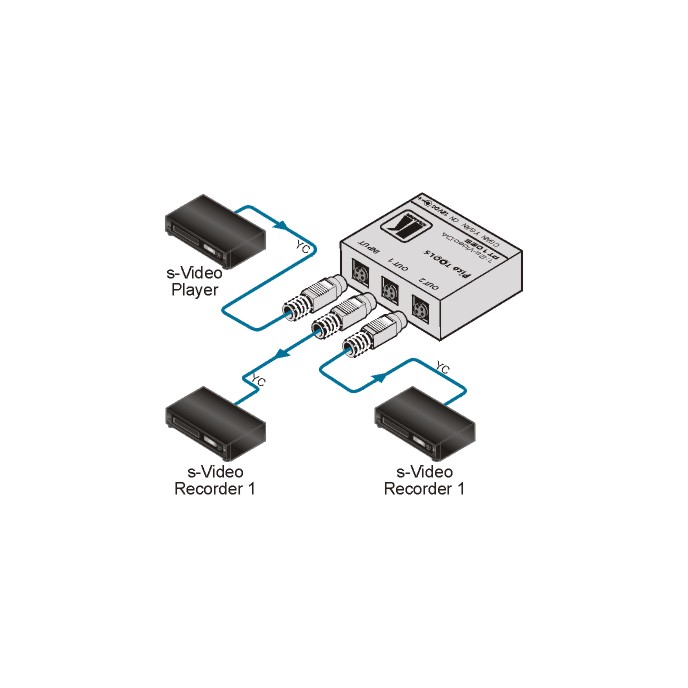

The Kramer PT102S is a high-performance video distribution amplifier for s-Video (Y/C) video signals. It takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.

Bandwidth (Y) - 150MHz (−3dB).
Y & C Level (Gain) Controls.
Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.

Applications:

Video duplication studios.

CCTV and home theater use.

Rental and staging applications.

Any professional display system requiring an identical picture on several monitors.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 s−Video, 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on a 4−pin connector.
OUTPUT:	2 s−Video, 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on 4−pin connectors.
MAX. VIDEO OUTPUT:	2Vpp.
VIDEO BANDWIDTH (-3DB):	150MHz (Y).
DIFF. GAIN:	0.03%.
DIFF. PHASE:	0.03Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	78dB.
CONTROL:	Gain: 5dB, each Y and C via trimmers.
COUPLING:	AC.
POWER CONSUMPTION:	12V DC, 30mA.
DIMENSIONS:	6cm x 6.5cm x 2.5cm (2.36” x 2.56” x 1”) W, D, H.
WEIGHT:	0.12 kg (0.26lbs) approx.
INCLUDED ACCESSORIES:	Power supply.
OPTIONS:	RK−4PT 19" rack adapter.
