INPUT:

1 Y/C, Y=1Vpp/75Ω, C=0.3Vpp/75Ω on a 4−pin connector.

OUTPUT:

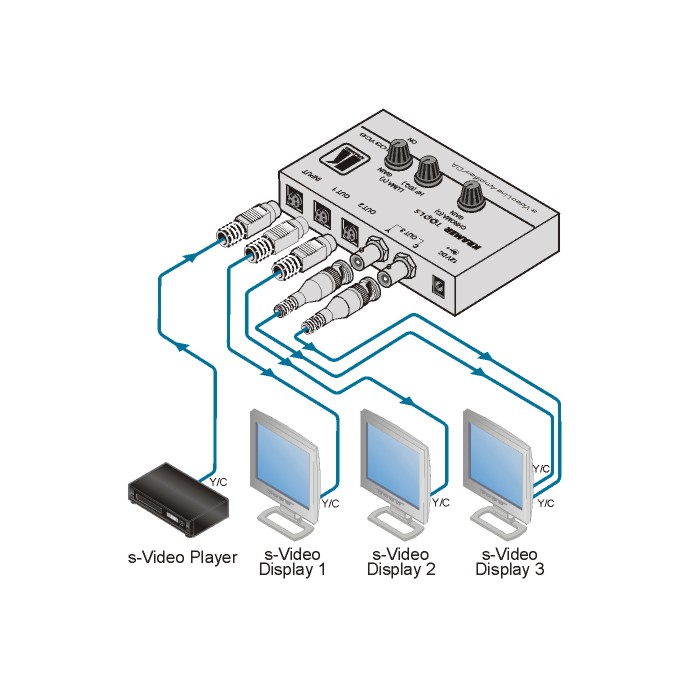

2 Y/C, Y=1Vpp/75Ω, C=0.3Vpp/75Ωs, on 4−pin connectors and one output on 2 BNC connectors (Y and C).

BANDWIDTH (-3DB):

420MHz (Y).

MAX. OUTPUT LEVEL:

2.6Vpp/75Ω (Y).

DIFF. GAIN:

0.05%.

DIFF. PHASE:

0.03Deg.

K-FACTOR:

<0.05%.

S/N RATIO:

72.4dB.

CONTROL:

Y level: −1 to +6.5dB, Y EQ.: 0 to +10.5dB, C level: − 0.6 to +5.9dB.

COUPLING:

DC(4); AC(c).

POWER CONSUMPTION:

12V DC, 40mA.

DIMENSIONS:

12cm x 7.5cm x 2.5 cm (4.7” x 2.95” x 0.98”) W, D, H.

WEIGHT:

0.3kg (0.66lbs) approx.

INCLUDED ACCESSORIES:

Power supply, mounting bracket.

OPTIONS:

RK−3T 19" rack adapter.
